Zip Hinge™ Installation Instructions



Tools Required: Tin Snips, 8 Zip Screws*, 1/4” Hex Bit and a Drill

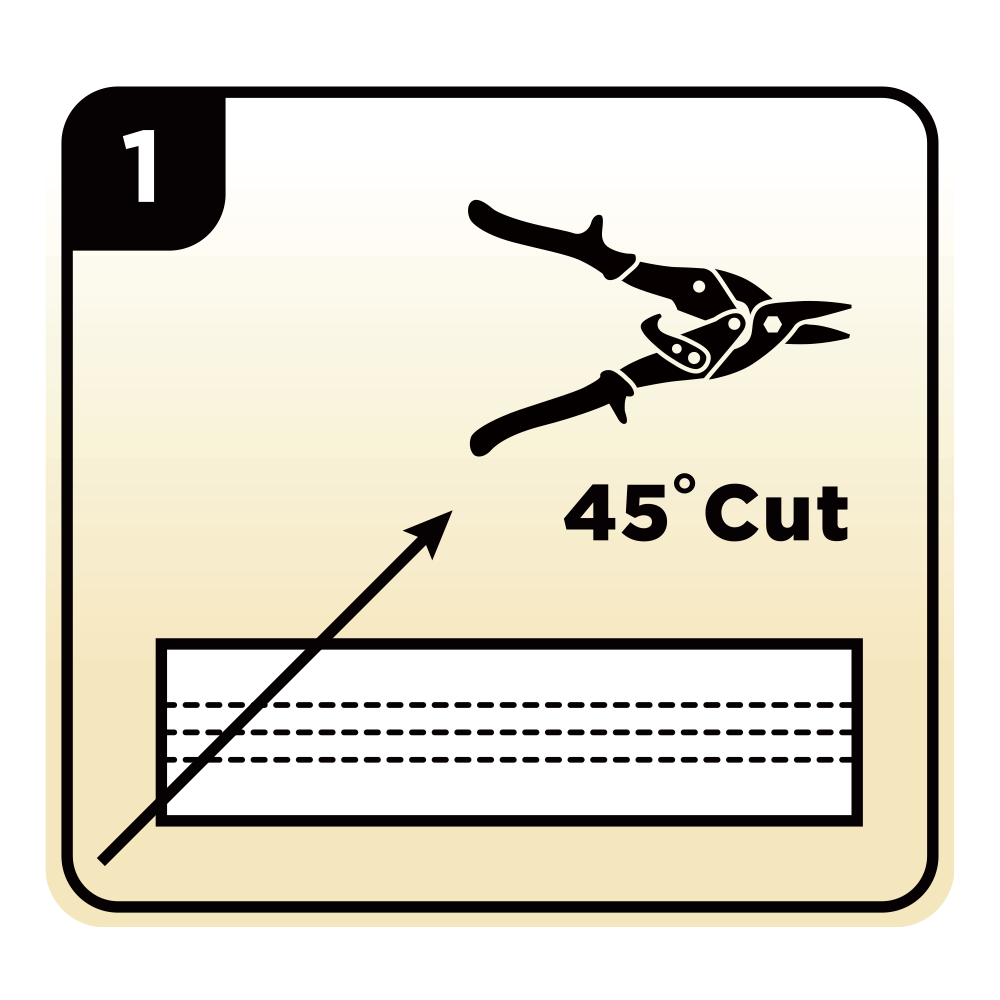

  • Zip Hinge™ Instructions - Part 1Using tin snips, cut out a 45 degree angled section of the downspout extension.

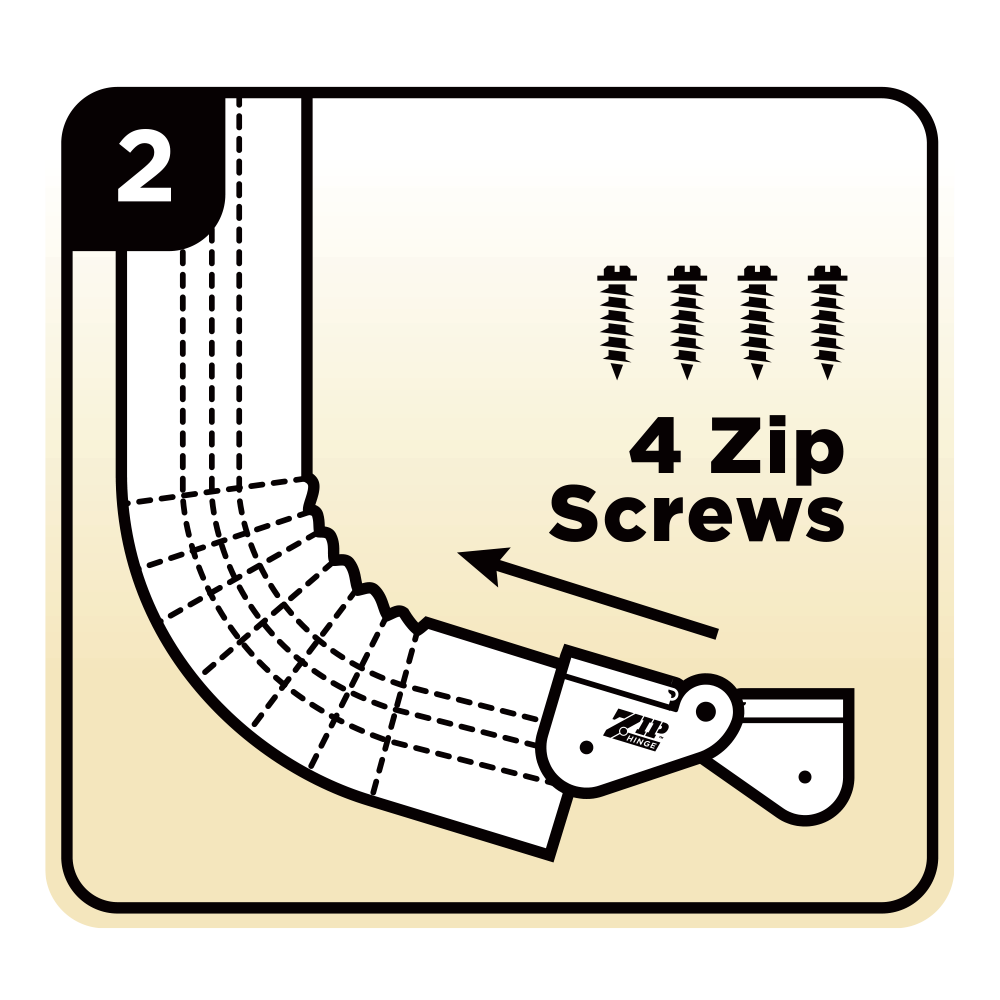

  • Zip Hinge™ Instructions - Part 2Slide the Zip Hinge™ onto the elbow of the downspout and secure with zip screws. Make sure the Zip Hinge™ is fully seated before attaching.

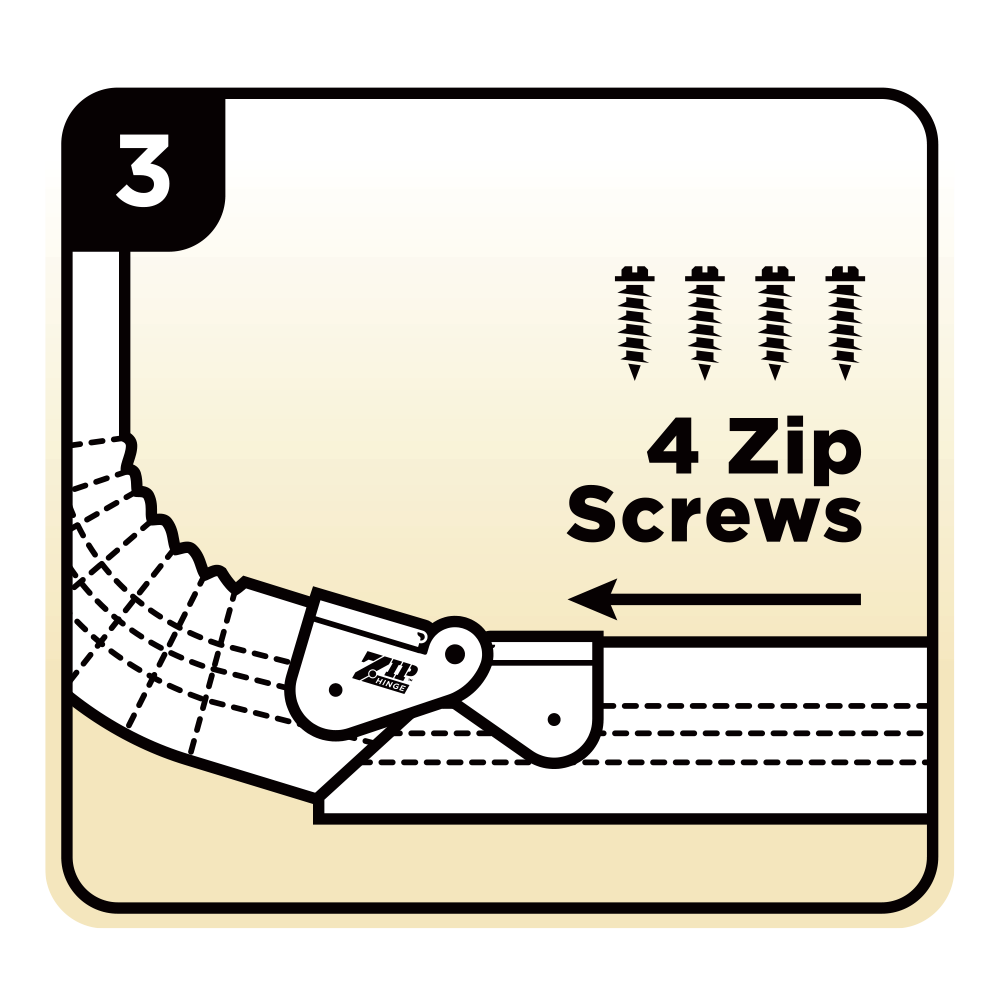

  • Zip Hinge™ Instructions - Part 3Slide the cut section of the downspout extension into the Zip Hinges™ and secure with zip screws. Make sure the downspout is fully seated before attaching.

Optional Zip Hinge™ Clasp Installation Instructions

Tools Required: 1 Zip Screw*, 1/4” Hex Bit, Drill or 1/8” Rivet and Rivet Gun

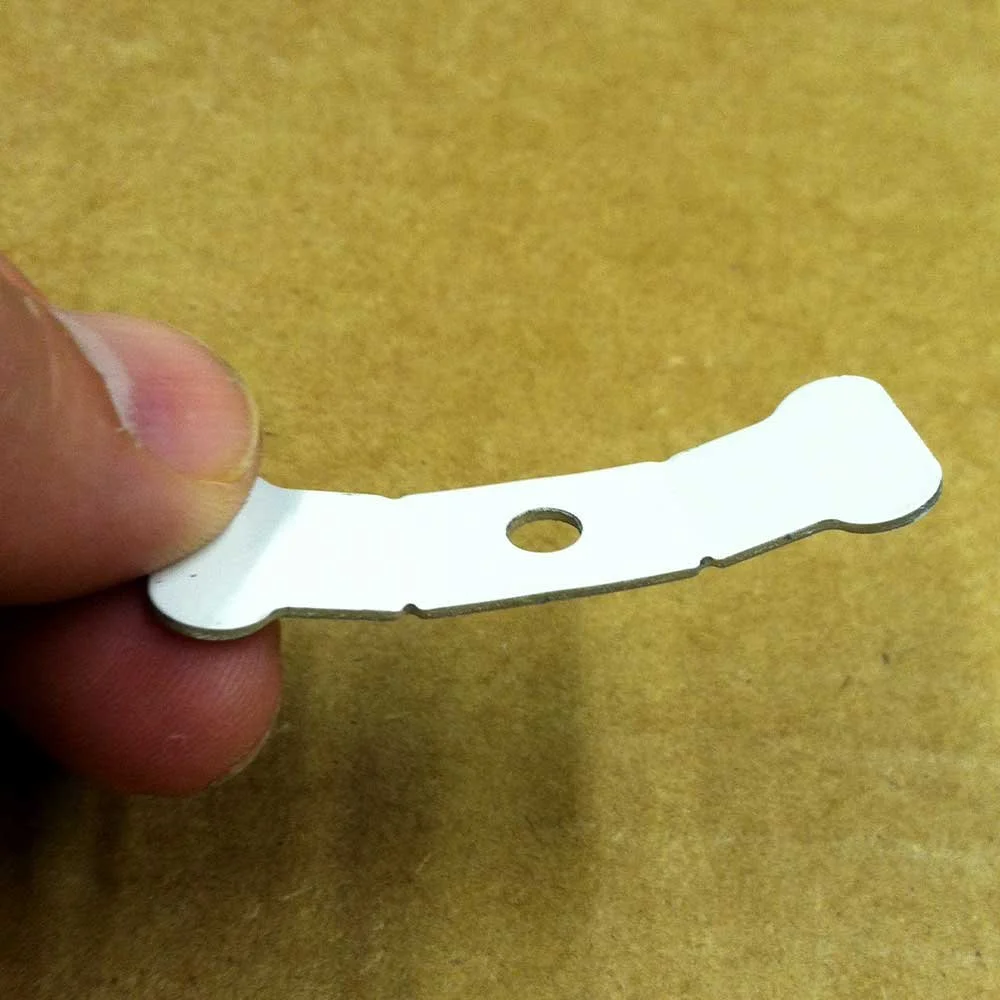

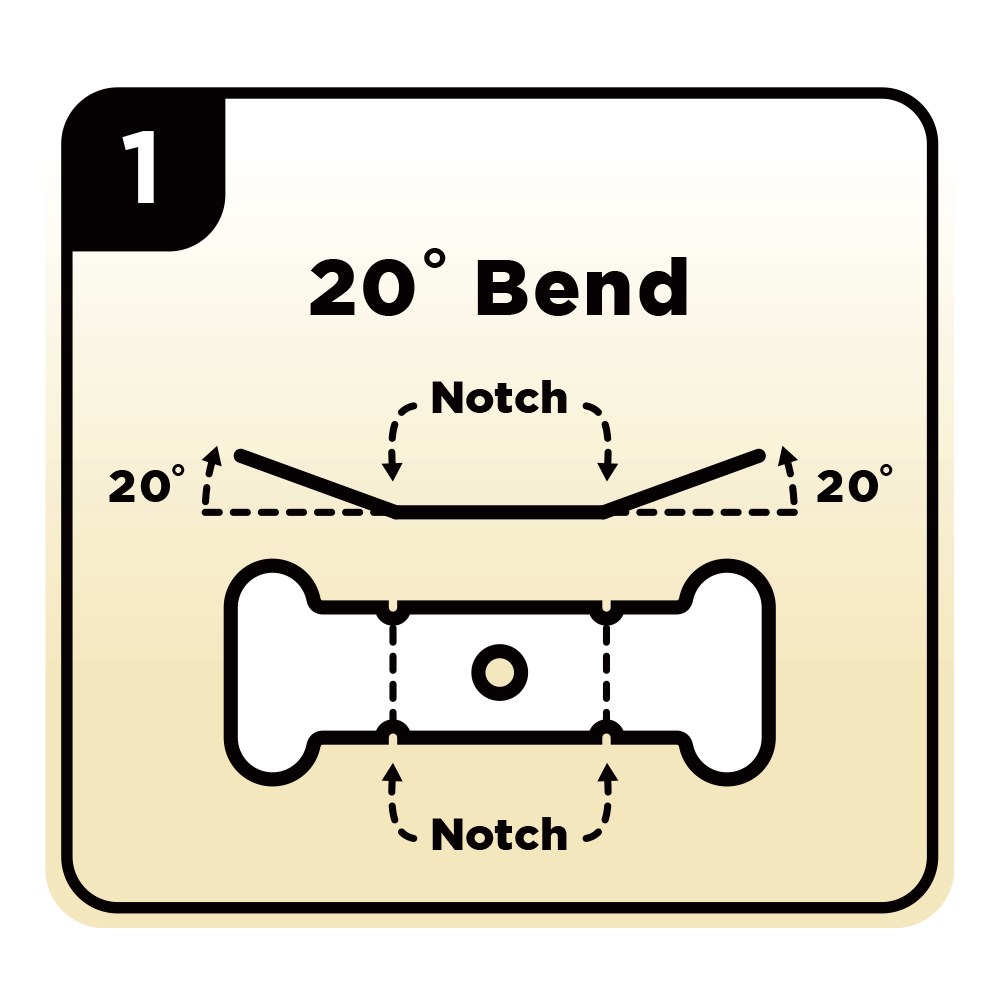

  • Optional Zip Hinge™ Clasp Installation Instructions - Part 1Bend clasp at notches to approximately 20 degrees.

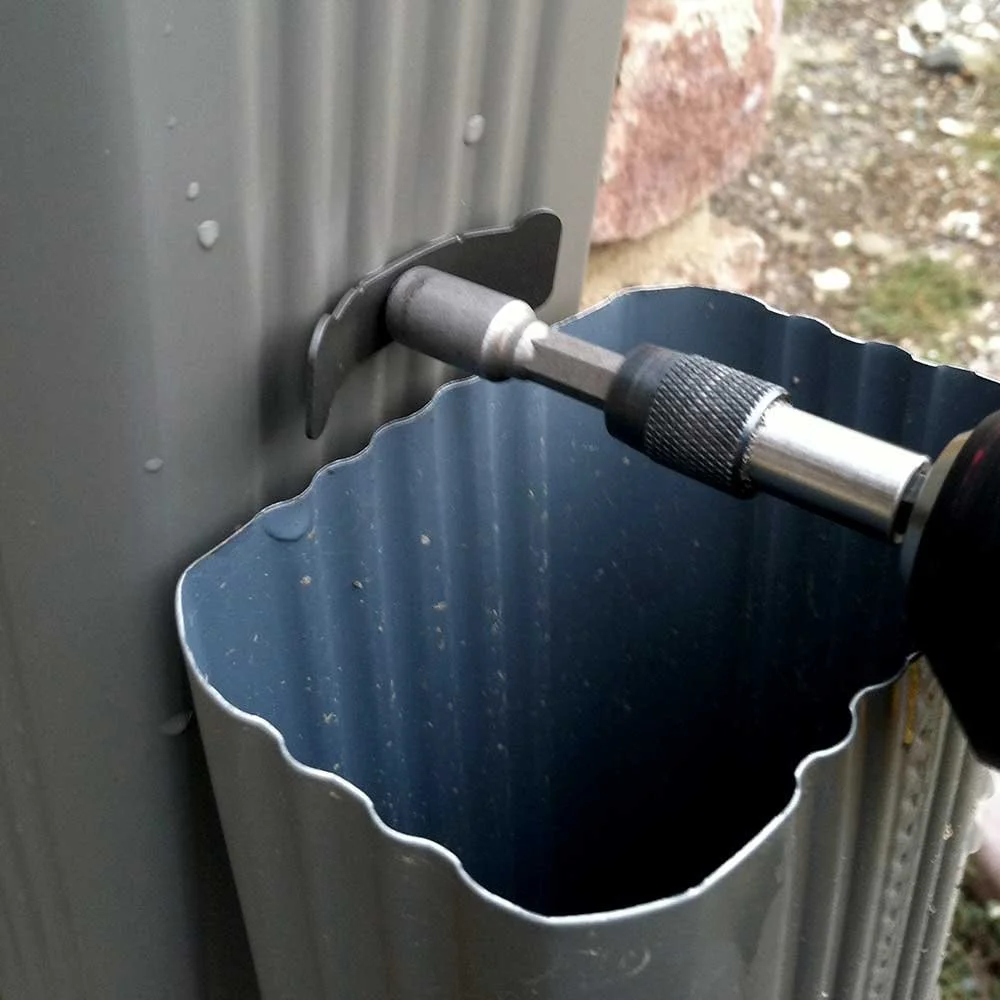

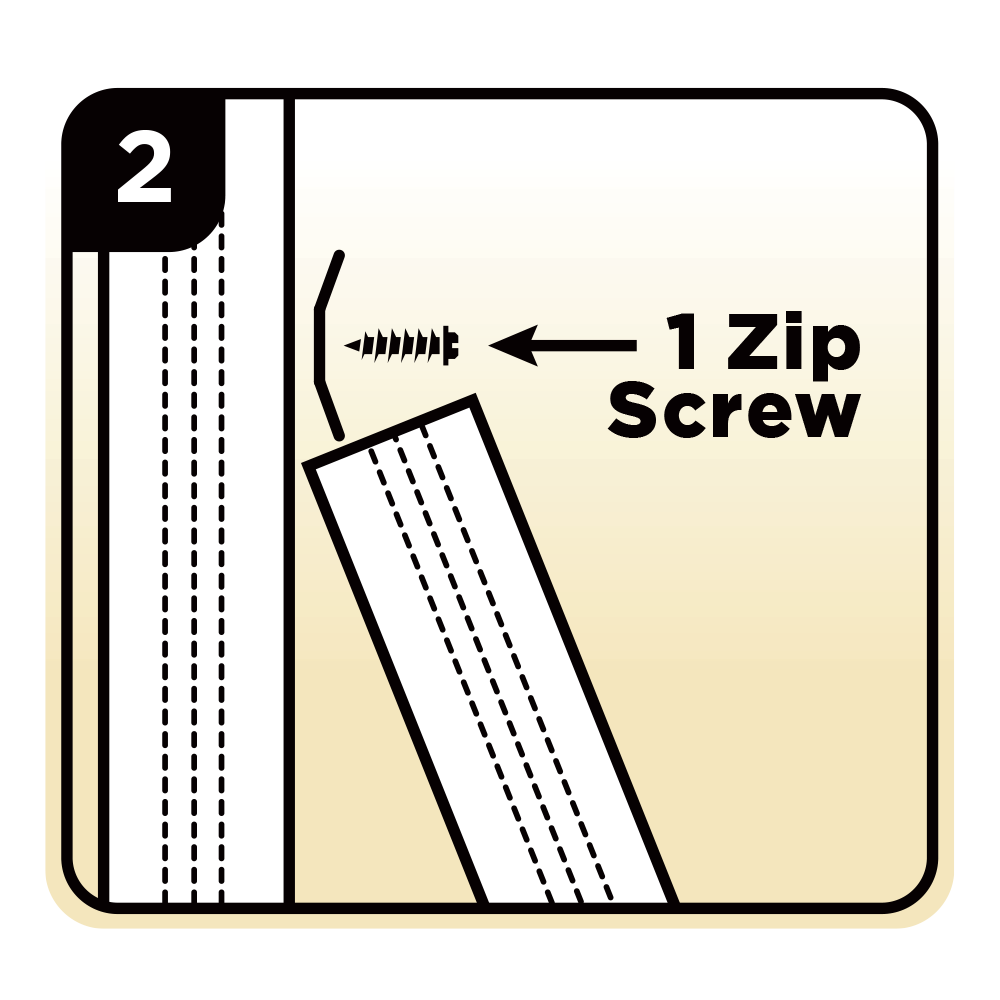

  • Optional Zip Hinge™ Clasp Installation Instructions - Part 2Use zip screw or 1/8” rivet to attach clasp 3/4 inches above raised extension.

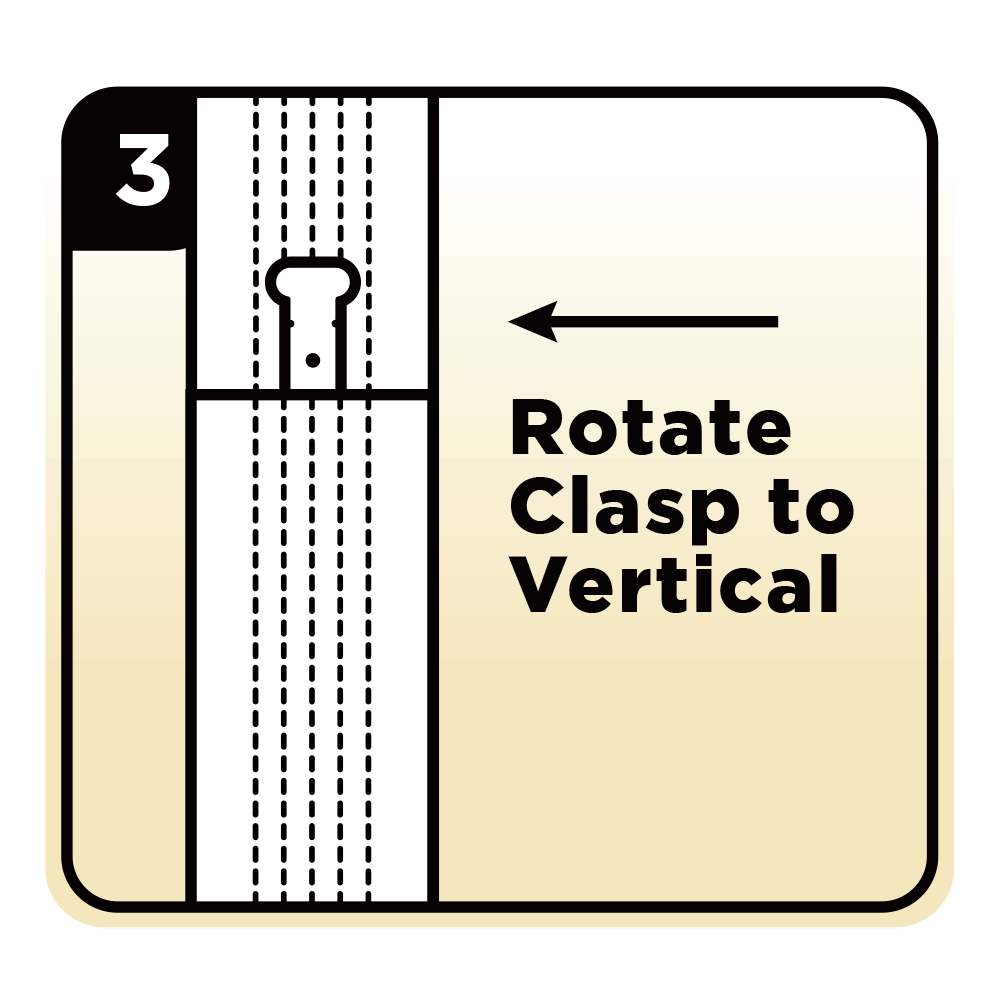

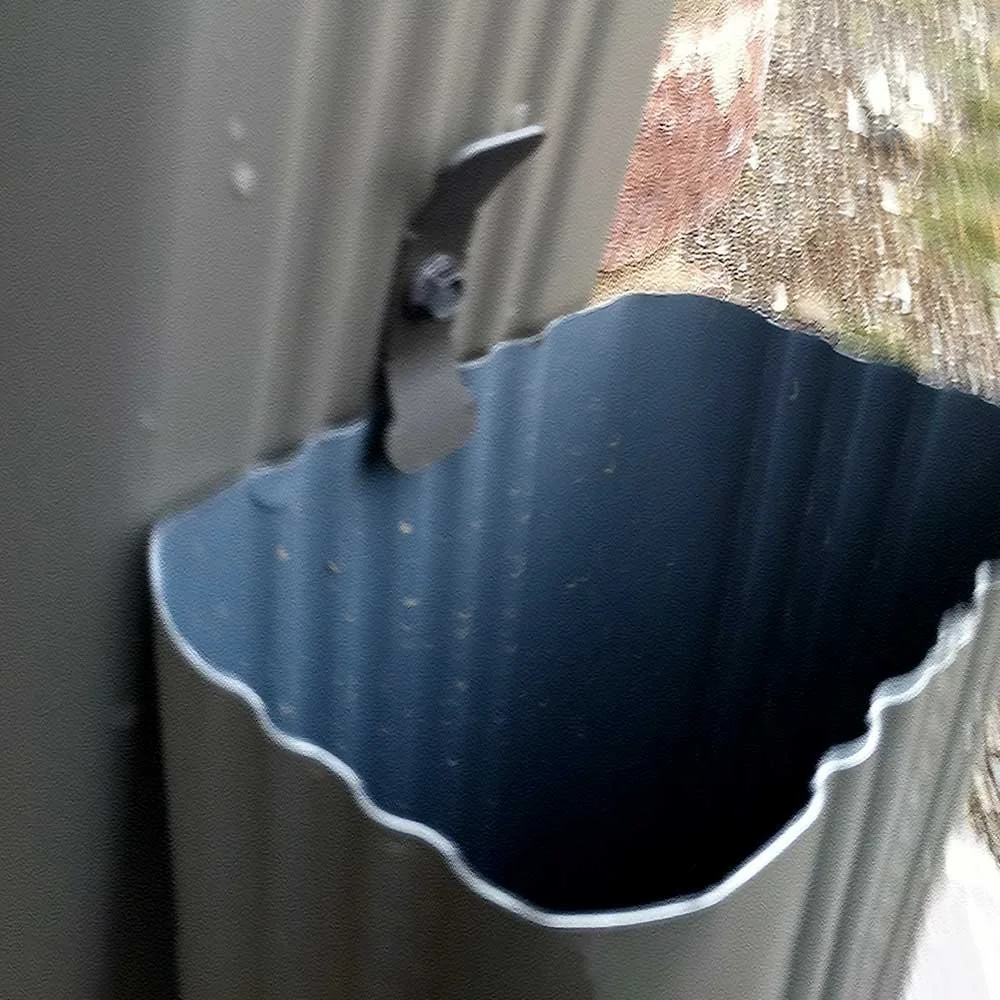

  • Optional Zip Hinge™ Clasp Installation Instructions - Part 3Rotate clasp to vertical position to hold extension upright.

*Zip screws are not included.

Safety Icons
